UltraCare® XT

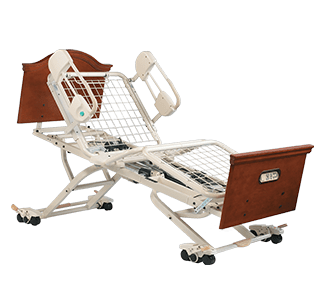

The UltraCare® XT expands its advantages with tailored care for more care environments. Now with 650 lbs capacity, the UCXT enables personalized care for more residents with dignity. Simplify care with intuitive controls, convenient comfort positioning with AdvanceCare and upgrades including the Joerns-exclusive smart connected care capability. The ONE bed that offers comfort and protection for both resident and patient.
- UCXT Spec Sheet
- Bed Panel Spec Sheet
- UCXT Accessory Page
- Comfort Extension
- Deluxe Assist Handle
- UCXT Warranty
- UCXT Series Manual for 650 lb Bed
- UCXT Series Manual for 500 lb Bed
- UCXT Series Parts List 650 lb Dec 2023-Current
- UCXT Series Parts List 500 lb Pre–Dec 2023
- New EasyCare and UltraCare XT Intro
- UCXT Feature Training
- UCXT Troubleshooting
- UCXT Inservice
- Proper Pendant Usage
- UCXT Series Manual, French Translation
- UCXT Series Manual, Spanish Translation
Product Details
- Expanded capacity to 650 lbs uses toroidal architecture engineering of the bed’s steel frame to accommodate more patients
- AdvanceCare positioning offered as a standard feature now includes 30°/45° comfort pauses for staff efficiency better enabling care and dignity for all patients including bariatric care
- Optional staff control offer advanced clinical control, safety lockouts and ergonomic functionality now including programmable AutoTransfer Height for personalized care
- Extendable four-section mattress support platform offers full range of comfort and therapeutic positions, which may reduce skin shear
- UltraLock is available at the foot end or both the head and foot to maximize security or mobility at any height
- Connexio®-ready for connected care enables improved efficiency and delivery of care by empowering operators and clinicians with real time visibility of assets, staff and residents
- Bed Length 80 in standard, 84 in, 88 in with length extension
- Bed Width 35 in, 39 in or 42 in with UltraWide Kit
- Bed Weight 220 lbs
- Bed Weight Capacity 650 lbs
- Operating Capacity 600 lbs
- Underbed Clearance 23 3/4 in
- Sleep Surface Travel Range 7 in to 30 in
- Max. Back Angle 65 degrees to horizontal
- Max. Knee Angle 35 degrees to horizontal
- Max. Knee to Leg Angle 45 degrees
- Safety Standards: UL60601-1, CAN/CSA C22.2 NO. 601.1, IEC 60601-2-38, CAN/CSA C22.2 NO. 601.2.38
Frequently Asked Questions
Healthcare beds improve patient outcomes by supporting safety, mobility, pressure injury prevention, caregiver ergonomics, and resident comfort. As the first and last piece of Safe Patient Handling and Mobility (SPHM) equipment used each day, the bed serves as the foundation of care. Features such as adjustable height, positioning capabilities, and integrated safety technologies can help residents move more safely, support caregiver efficiency, and contribute to better clinical and quality-of-life outcomes.
The most effective falls prevention programs combine environmental safety measures, staff education, appropriate bed systems, resident monitoring, and mobility support. Facilities can reduce fall risk by using wider low-height beds, improving visibility of at-risk residents, implementing assessment protocols, and utilizing technologies that detect movement or changes in resident status. Joerns®’ Falls Management Solutions and low-height bed options such as the EasyCare® and UltraCare® XT support these efforts while helping facilities improve resident safety.
The best bed for fall prevention is one that allows residents to safely enter and exit while minimizing injury risk if a fall occurs. Features such as low deck height, adjustable positioning, caregiver-friendly controls, and stability enhancements are important considerations. Organizations evaluating fall prevention programs should compare solutions such as EasyCare®, UltraCare® XT, and the RC Ultra Hi-Lo 850, all designed for long-term care environments.
Low beds help reduce fall-related injuries by decreasing the distance between the resident and the floor. However, the lowest bed height is not always the safest. A well-designed low bed should balance injury reduction with safe resident egress, providing a low height for fall mitigation while allowing quick adjustment to an appropriate transfer and standing height. Beds that reach approximately 7 inches from the floor can help achieve both goals as part of a comprehensive falls management program.
Adjustable-width beds can improve stability, comfort, positioning, and safe mobility. Wider sleep surfaces may help reduce accidental rollouts while providing caregivers with better positioning options for residents with varying clinical needs.
When evaluating a healthcare bed, organizations should look beyond specifications and consider how the bed performs in daily use. Important factors include resident mobility support, bed articulation, compatibility with the support surface, low-height capability, speed of height adjustment, caregiver ergonomics, durability, and ease of operation. The best bed systems balance resident safety, mobility, pressure injury prevention, and caregiver efficiency while minimizing lifetime ownership costs.
Low beds reduce fall-related injuries by decreasing the distance between the resident and the floor, which can reduce impact forces if a fall occurs. Research suggests that the reduction in impact force begins to diminish beyond approximately 7 inches from the floor, while excessively low bed heights may increase the risk of falls during bed exit and entry. The most effective low bed balances injury reduction with safe resident egress and caregiver accessibility.
Healthcare beds influence outcomes by supporting safe transfers, reducing fall risk, minimizing caregiver strain, promoting comfort, improving positioning, and enabling the use of therapeutic technologies that support mobility, skin integrity, and recovery. [joerns.com], [joerns.com]
The ideal bed height depends on the goal. A low height of approximately 7 inches can help reduce injury severity from falls, an egress height of approximately 18 inches supports safer bed exits and transfers, and a care height of approximately 35 inches helps reduce caregiver strain. Because resident and caregiver needs vary, the best bed systems allow multiple programmable height positions that support resident safety, mobility, and caregiver ergonomics throughout the day.
Technologies that support care quality include smart bed systems, integrated support surfaces, bed-exit monitoring, nurse call connectivity, pressure redistribution therapies, fluid immersion simulation technology, and safe patient handling and mobility solutions.
The EasyCare bed is built for home and residential care settings, with a quieter drive system, a lower deck height for easier transfers, and a design intended to feel less clinical in a home environment. Unlike hospital beds these do not come with a scale, bed exit alarm, or x-ray tray.
Most Joerns support surfaces are compatible across our bed frame line, but bariatric surfaces require a bariatric-rated frame. Check the compatibility section on each product page, or contact us to confirm a specific pairing.
Administrators should choose equipment that works for caregivers, not equipment that makes caregivers work harder. While purchase price is important, factors such as ease of use, resident outcomes, staff satisfaction, durability, maintenance requirements, training needs, and total cost of ownership often have a greater long-term impact. The best equipment investments support both quality care and a positive caregiver experience.
Equipment that helps reduce caregiver injuries includes patient lifts, repositioning devices, integrated bed systems, therapeutic support surfaces, and mobility equipment. Bed systems are especially important because they support both resident and caregiver safety through multiple height positions. Low height (approximately 7 inches) can help reduce fall-related injuries, egress height (approximately 18 inches) supports safer bed exits and transfers, and care height (approximately 35 inches) helps reduce caregiver strain. Adjustable equipment that supports safe patient handling and mobility can help create a safer care environment for both residents and caregivers.
The leading predictors of falls in nursing homes are a history of previous falls and changes in environment, including new admissions and transfers. Many falls occur within the first 48 hours of entering a new care setting, when residents are adapting to unfamiliar surroundings and may have reduced mobility or functional abilities. Effective fall prevention combines resident assessment, mobility support, appropriate bed systems, monitoring technologies, and caregiver education.
Evidence-based falls management uses clinical research, risk assessment, monitoring technology, therapeutic surfaces, appropriate bed heights, and proven care protocols to reduce fall risk and injury severity while maintaining resident dignity and mobility.
Best practices include individualized risk assessments, proper bed selection, low-height bed use, bed-exit monitoring, caregiver training, environmental safety measures, mobility support, safe transfer protocols, and routine review of fall incidents to guide continuous improvement. [joerns.com], [joerns.com]
Smart bed systems, connected care platforms, resident monitoring solutions, and advanced support surfaces can help detect patient movement and identify potential fall risks. These technologies provide caregivers with greater visibility into resident activity, helping them recognize changes earlier, prioritize interventions, and support safer care environments. Nurse call integration and movement alerts can further improve awareness when assistance may be needed.
An effective falls prevention program combines resident risk assessment, staff education, mobility support, safe patient handling practices, low-height bed systems, therapeutic support surfaces, monitoring technologies, and ongoing outcome evaluation. Facilities should consider not only a bed’s low height, but also its ability to support safe egress height for residents and appropriate care height for caregivers. A multidisciplinary approach helps reduce both fall frequency and injury severity while supporting resident mobility and caregiver safety.
Facilities can improve resident safety by integrating fall prevention, pressure injury prevention, safe patient handling and mobility programs, advanced support surfaces, staff education, and monitoring technologies into everyday care workflows.
Post-acute care facilities can improve staff efficiency through equipment standardization, streamlined workflows, integrated bed systems, resident monitoring technologies, safe patient handling equipment, and mobility solutions. Standardization helps caregivers work more consistently, reduces training requirements, simplifies maintenance, and improves equipment utilization. When paired with intuitive technology and efficient processes, these strategies help caregivers spend more time focused on resident care.
Yes. Our bariatric-rated surfaces are sized and weight-tested to pair with frames like the Bari 10A. Standard surfaces are not rated for bariatric use and shouldn’t be substituted.
