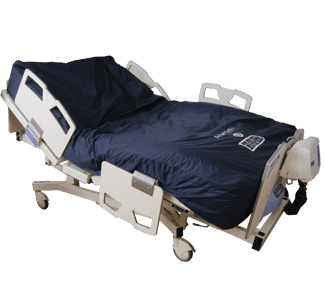

Arise® 1000 EX

The Arise® 1000 EX is an expandable therapy system that provides pressure redistribution by combining low air loss with pulsation for patients weighing up to 1000 pounds. This product has been specifically designed for the unique features of the Joerns Bari10A bed frame and its capability to extend and contract in width and length.

With special features such as a power interruption alarm, a patient position sensor which optimizes support for seated patients (Fowler Boost) and a low friction and low shear cover, the Arise 1000 EX can provide increased caregiver peace of mind and patient comfort for your bariatric patients.

Product Details

  • Sixteen (eight paired) therapy cells help to evenly distribute the patient’s weight and maximize pressure redistribution
  • Five-inch deep therapy cells provide support and prevent bottoming out for patients within weight limit
  • Mattress control panel provides: independent inflation and deflation of six-inch wide side bolsters when used in combination with the Joerns Bari10A bed frame (allows for mattress widths of 36″, 42″ or 48″)
  • Length inflation and deflation from 80″ to 88″
  • Lower three-inch therapy cell provides support in the event of a power failure
  • Anti-kink, easy clean air supply hose set Maximum weight capacity of 1000 lbs.
  • Control unit features true low air loss and three modes of operation – Autofirm, Pulsate and Therapy (eight levels)
  • Patient position sensor optimizes support for seated occupants (Fowler Boost)
  • Mattress Width: 36″ (91cm), 42″ (107cm), 48″ (122cm)
  • Mattress Length: 80″ (203cm), 88″ (224cm)
  • Mattress Depth: 8.5″ (22cm)
  • Mattress weight: 28 lbs. (13 Kg)
  • Maximum weight capacity: 1000 lbs. (455 Kg)
  • Control Unit Dimensions: 13.5″ (34 cm)W x 11″ (28 cm)H x 7.5″ (19 cm)D
  • Control unit weight: 10 lbs. (4.5 Kg)
  • Pressure Redistribution: Stage 1 – 4 Pressure Injuries; Moisture Management Required; Rehabilitation; Burns; Neurology; Dermatology; Amputations
  • Pain Management: AIDS; Arthritis; Oncology
